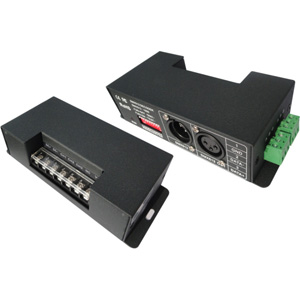

CC 3CH DMX Driver

Build Your Online Product Catalogs?




Description
Product Name: CC 3CH DMX Driver
Supply Ability:
Specifications HL-DMX603-350
Price Term:
Port of loading:
Minimum Order
Unit Price:
You may also be interested in: dimming, dmx, led controller,

PRODUCT FEATURES
1. For single color/RGB/RGBW LED lamp dimming and color changing.
2. Controllable with the international standard DMX512 protocol.
3. Optional with constant current/constant voltage/single channel/multiple channel models.
4. Multiple models in series/parallel connection, easy to install.
5. Workable with our DMX signal splitter/amplifier.

Technical parameter
Power Chosen CV power supply
Input voltage DC12-48V
Output voltage DC3-42V
Input signal DMX512
Output signal CC PWM
Current load 350mA*3CH
Output power 12.6W-50.4W
Dimming range 0-100%
G.W. 430g
Product size L157*W68*H41(mm)
Prackage siza L174*W78*H49(mm)
